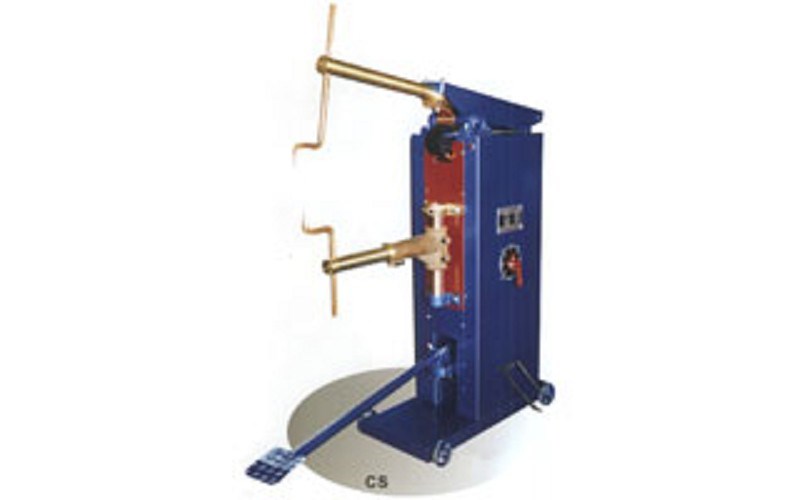

Treble AC Bird-Type Point Welder
Feature :
- Simple operate, could install digital regulating control.
- Bottom electrical pole is flexible and able to 180 degree rotation.
Applicable :
- Steel box / steel case / kitchen-furnishings / Paiyouji / freezer / stainless pot
CSS :

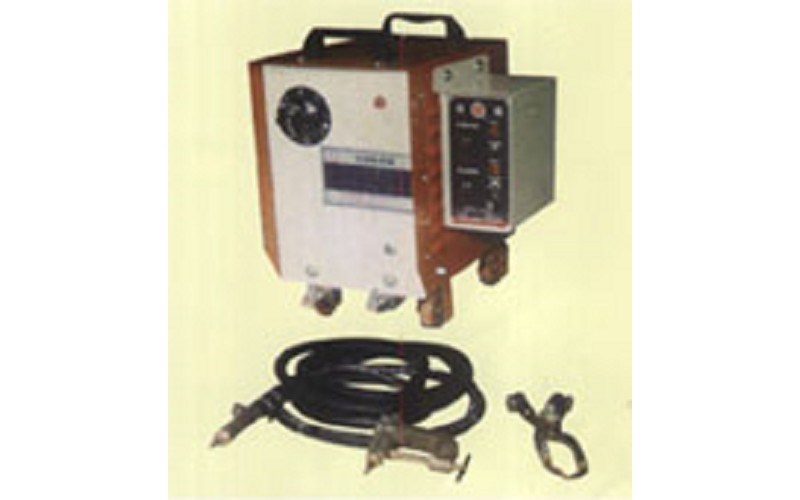

- The handling butt welder or uniface butt welder cooperate with fixtured can solve common welder which cannot weld large article
| Model | Rate Capacity |
Rate input voltage |
Rate freguency |
Max Input Power |
Rated MAX Welding Current |
Allowed Duty Cycle Cycle |
opening x Depth |
Max Weld force |
Welding capacity |
Electrode bar dimension |
| Size | KVA | V | HZ | KVA | A | % | m/m | kg | m+m | m |
| CS-25 | 25 | 220 380 440 |
50 | 40 | 8500 | 8.5 | 320x600 | 140 | 2.0+2.0 | 19 1/10 |
| 60 | ||||||||||
| CS-30 | 30 | 220 380 440 |
50 | 45 | 9600 | 9.5 | 320x600 | 180 | 2.5+2.5 | 19 1/10 |
| 60 | ||||||||||
| CS-35 | 35 | 220 380 440 |
50 | 55 | 11000 | 9.5 | 320x600 | 180 | 3.0+3.0 | 19 1/10 |
| 60 | ||||||||||
| CSS-30 | 30 | 220 380 440 |
50 | 50 | 7500 | 9.5 | 2500m/m | 100 | 1.2+1.2 | 13 |
| 60 | ||||||||||
| CSS-50 | 50 | 220 380 440 |
50 | 70 | 9600 | 2500m/m | 100 | 1.5+1.5 | 13 | |
| 60 |
