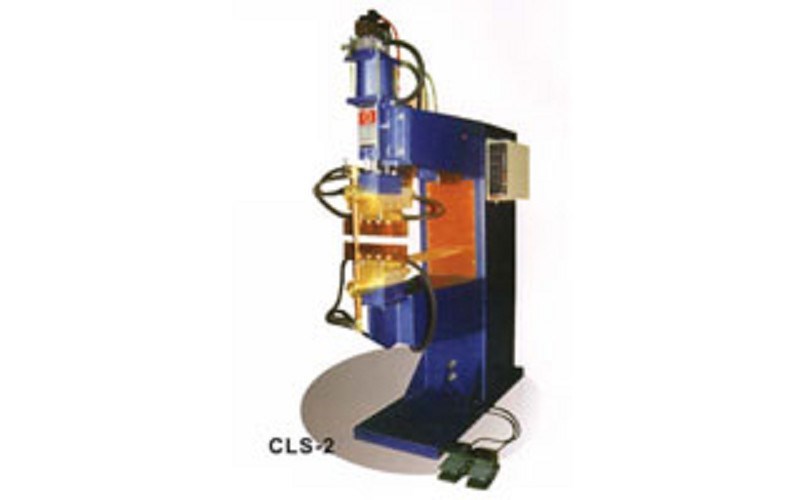

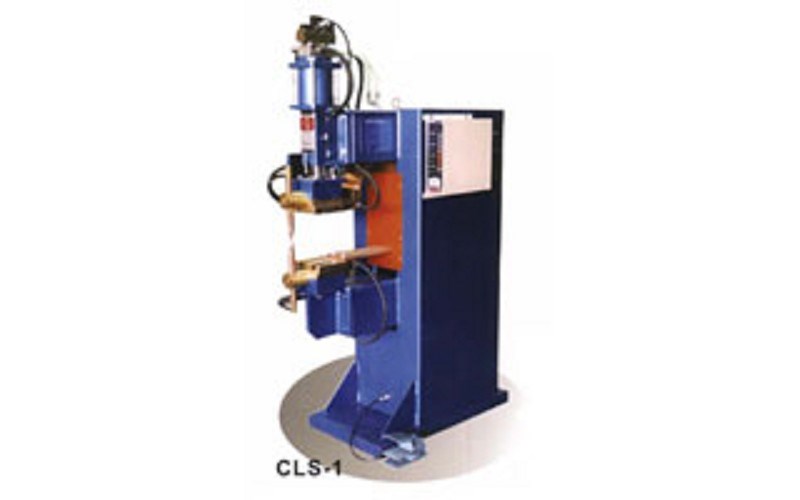

Projection-individure Spot Welder
-
The constructrue of air cylinder and electro - magnetic valve :
Air cylinder connected with electro-magnetic valve, it can reduce the air resistance during the distribution pipe, and minute adjust the air in/out for upward and downward.
Therefore, the adaptation of welding condition become very good, also enhance the punching speed. -
Pressurizing air cylinder working process :
Adopt non-step adjustable operation cusion with a pressurizing test switch, then can easycontrol the air cylinder upward and downward for convenient to adjust the electrical pole. -
High precision digital-syncronous l.e. circuits :
Controller adopt non-contactor digital-syncronous l.e. circuits and voltage fluctuation compensation circuits, it make a high precition weld. -
Welding current circuits :
Adopt S.C.R. non-contactor operation, super stability, longer lifer time and never out of work, ensure stable welding current. Enclose with an automatic temperature protective device, this device will be cut-off automatically for safety reason, when machine's inner temperature high-er than the rating or cooling water circulation got problem. -
Cooling water system :
Cooling Water adopt multi-branch pipe, can adjust the water-folw value from any branch pipe to use on the series preparation for specialelectrical pole. -
High efficiency transformer :
Adopt utra isolation m'tl and excellent cooling system, will never impact the welding current.
| Projection-individure Spot Welder standard spec | 220V/380V/440V |
|
Model |
Rate Capacity |
Rate input voltage |
Rate freguency |
Max Input Power |
Rated MAX Welding Current |
Allowed Duty Cycle Cycle |
opening x Depth |
Max Weld force |
Welding
Capacity |
Coolant Water |
Weight | electrode |
| Size | KVA | V | HZ | KVA | A | % | m/m | kg | mm+mm | l/mm | kg | m |
| CLS-40 | 40 | 220 380 440 |
50 | 75 | 17500 | 6.0 | 230x400 | 600 | 3.5+3.5 | 5 | 250 | 25 1/10 |
| 60 | 85 | 7.8 | ||||||||||
| CLS-45 | 45 | 50 | 85 | 19000 | 6.0 | 230x400 | 600 | 4.0+4.0 | 5 | 280 | ||
| 60 | 95 | 7.8 | ||||||||||
| CLS-55 | 55 | 50 | 131 | 22000 | 4.5 | 230x400 | 1000 | 5.0+5.0 | 10 | 400 | ||
| 60 | 145 | 6.8 | ||||||||||
| CLS-65 | 65 | 50 | 165 | 25000 | 4.5 | 230x400 | 1000 | 6.0+6.0 | 11 | 500 | ||
| 60 | 190 | 6.8 | ||||||||||
| CLS-80 | 80 | 50 | 180 | 28000 | 5.5 | 230x400 | 1000 | 7.0+7.0 | 10 | 600 | ||
| 60 | 215 | 7.8 | ||||||||||
| CLS-95 | 95 | 50 | 198 | 32000 | 5.5 | 220x300 | 1000 | 8.0+8.0 | 10 | 700 | ||
| 60 | 240 | 7.8 | ||||||||||
| CLS-105 | 105 | 50 | 350 | 35000 | 2.8 | 220x300 | 1000 | 9.0+9.0 | 10 | 800 | ||
| 60 | 380 | 3.5 | ||||||||||
| CLS-125 | 125 | 50 | 360 | 42000 | 2.8 | 220x300 | 1200 | 10 | 950 | 32 1/10 |
||
| 60 | 400 | 3.5 | ||||||||||
| CLS-155 | 155 | 50 | 460 | 45000 | 4.5 | 220x300 | 1500 | 10 | 1100 | |||
| 60 | 510 | 5.8 | ||||||||||
| CLS-200 | 205 | 50 | 560 | 53000 | 5.0 | 220x300 | 1500 | 10 | 1300 |
