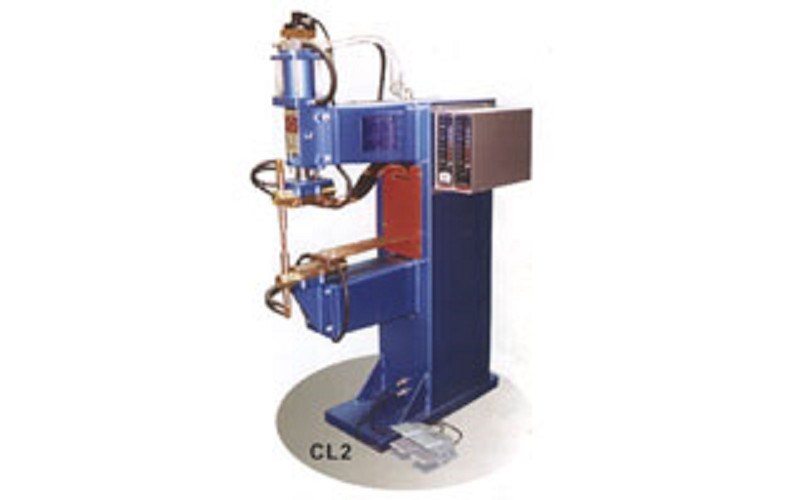

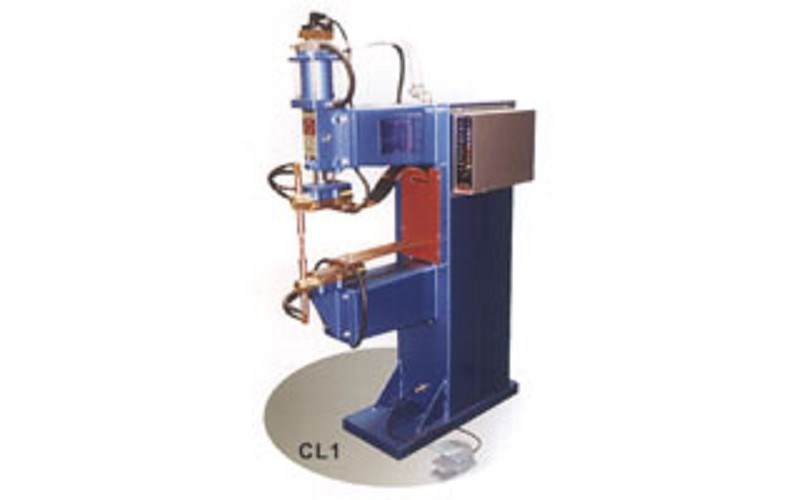

Individure Spot Welder
- The constructrue of air cylinder and electro - magnetic valve :
Air cylinder connected with electro-megnetic valve, it can reduce the air resistance during the distribution pipe, and minute adjust the air in/out for upward and downward.
Therefore, the adapation of welding condition become very good, also enhance the punching speed. - Pressurizing air cylinder working process :
Adopt non-step adjustable operation cusion with a pressurizing test switch, then can easycontrol the air cylinder upward and downward for convenent to adjust the electrical pole. - High precition digital-syncronous l.e. circuits :
Controller adopt non-contactor digital-syncronous l.e. circutis and voltage fluctuation compensation circuits, it make a high precition weld. - Welding current circuits :
Adopt S.C.R. non-contactor operation, super stability, longer lifer time and never out of work, ensure stable welding current. Enclose with an autometic temperature protective device, this device will be cut-off autometicly for saffty reason, when machine's inner temperature high-er than the rating or cooling water circulation got problem. - Cooling water system :
Cooling Water adopt multi-branch pipe, can adjust the water-folw value from any branch pipe to use on the series preparation for specialelectrical pole. -
High efficiency transformer :
Adopt utra isolation m'tl and excellent cooling system, will never impact the welding current.
| Projection-individure Spot Welder standard spec | 220V/380V/440V |
|
Model |
Rate Capacity |
Rate input voltage |
Rate freguency |
Max Input Power |
Rated MAX Welding Current |
Allowed Duty Cycle Cycle |
opening x Depth |
Welding
Capacity |
Max Weld force |
Coolant Water |
Weight | electrode |
| Size | KVA | V | HZ | KVA | A | % | m/m | mm+mm | kg | l/mm | kg | m |
| CL-35 | 35 | 220 380 440 |
50 | 65 | 16500 | 9.8 | 250x500 | 3.0+3.0 | 600 | 5 | 230 | 25 1/10 |
| 60 | 75 | 8.8 | ||||||||||
| CL-40 | 40 | 50 | 80 | 18000 | 8.2 | 3.5+3.5 | 600 | 5 | 260 | |||
| 60 | 90 | 7.4 | ||||||||||
| CL-50 | 50 | 50 | 120 | 21000 | 10 | 4.5+4.5 | 1000 | 6 | 400 | |||
| 60 | 135 | 8.2 | ||||||||||
| CL-60 | 60 | 50 | 145 | 23000 | 8.0 | 5.5+5.5 | 1000 | 6 | 440 | |||
| 60 | 180 | 6.0 | ||||||||||
| CL-75 | 75 | 50 | 160 | 26000 | 9.2 | 6.5+6.5 | 1000 | 8 | 480 | |||
| 60 | 200 | 7.5 | ||||||||||
| CL-90 | 90 | 50 | 210 | 30000 | 9.2 | 7.5+7.5 | 1000 | 10 | 600 | |||
| 60 | 240 | 7.5 |
